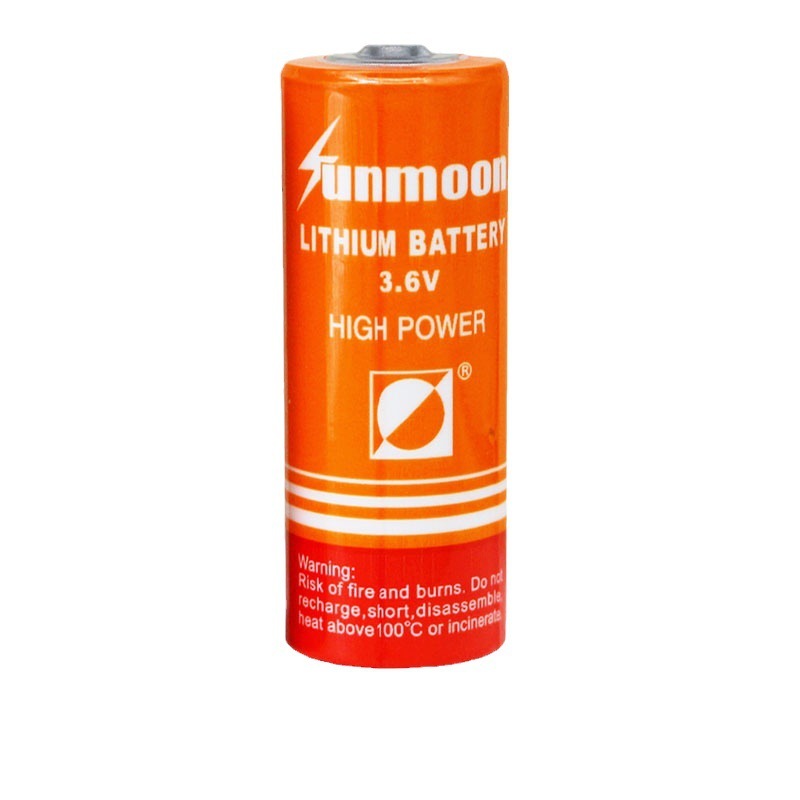

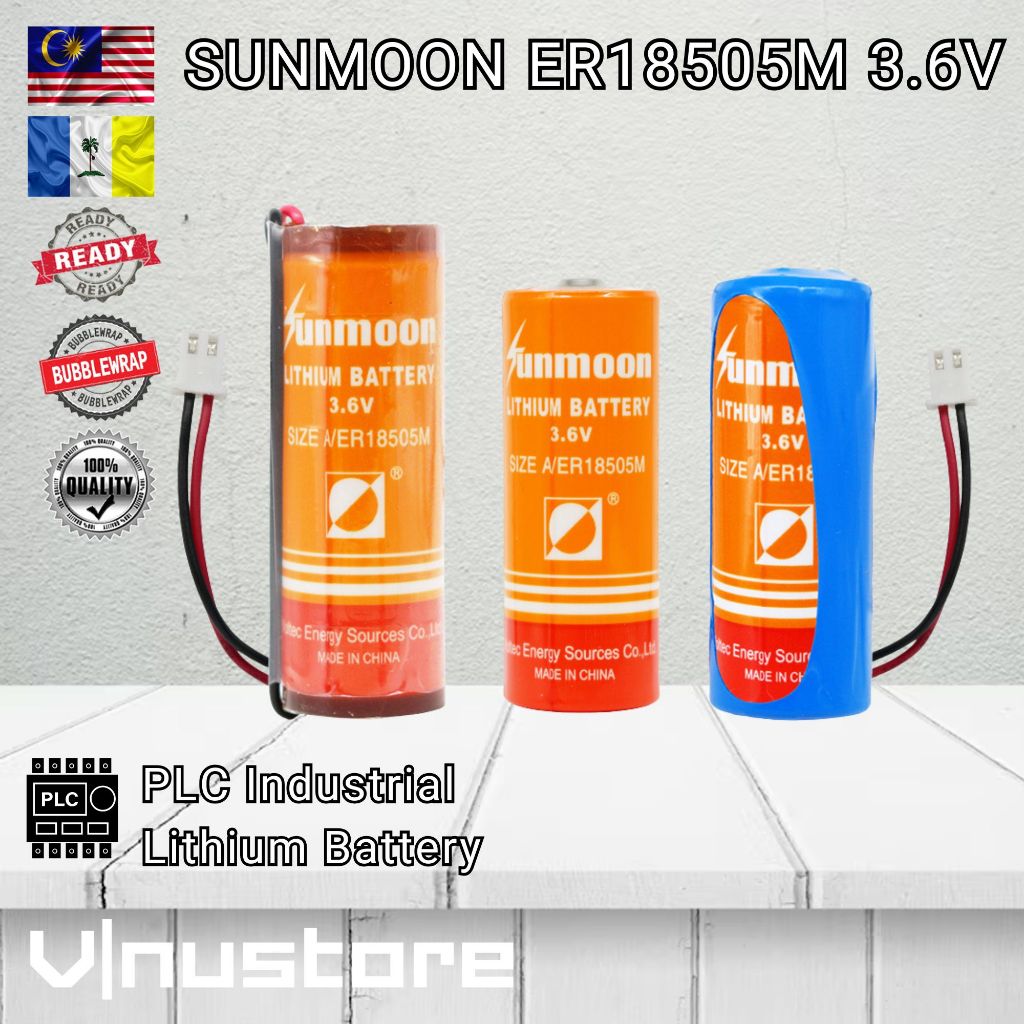

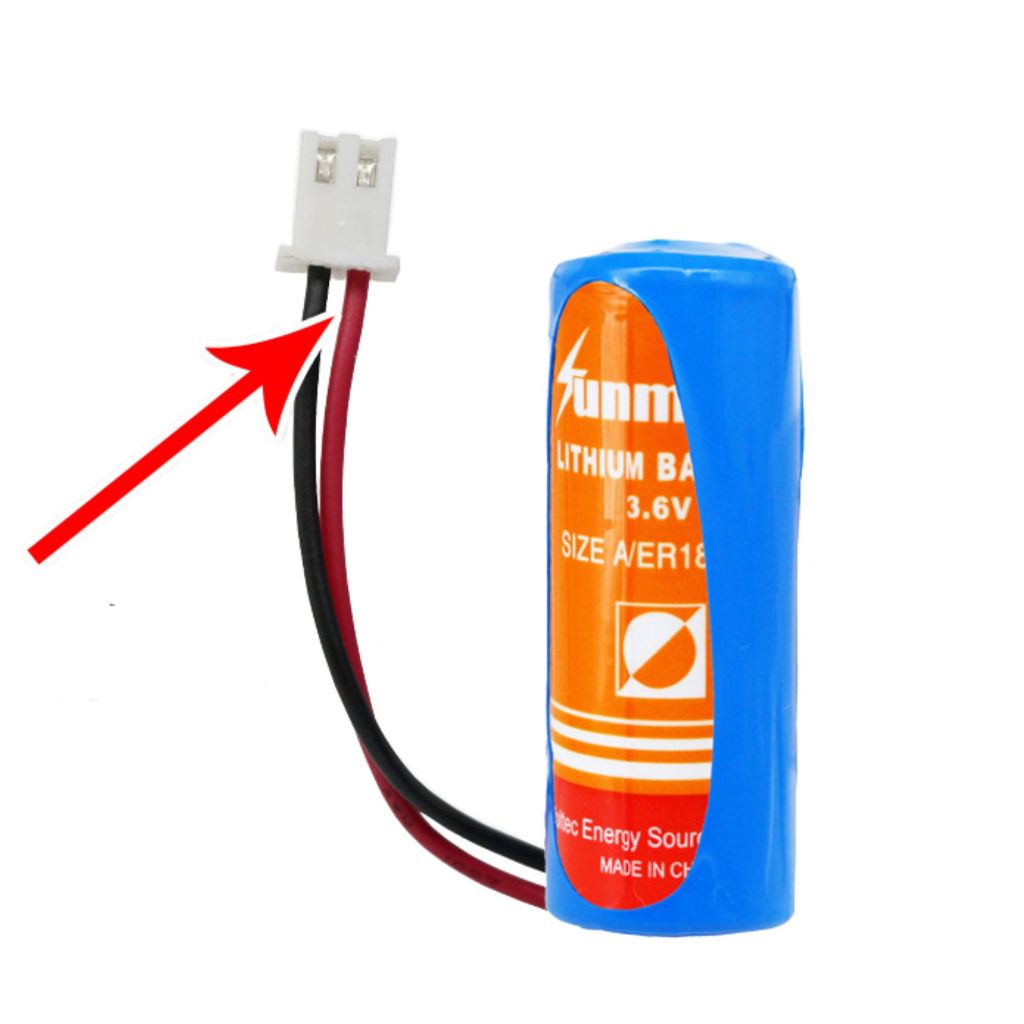

š ER18505M 3.6V Medium-Rate Industrial PLC Battery
šÆ Key Application & Performance
This ER18505M battery is a reliable 3.6-Volt power source engineered for industrial and long-life memory backup applications where a steady, medium discharge rate is required.
Primary Function: Memory backup (SRAM/CMOS), real-time clock (RTC), and parameter retention in Programmable Logic Controllers (PLCs), CNC machines, and industrial computing devices.
Medium-Rate Discharge: The "M" designation indicates it is suitable for applications that require a steady, higher continuous current draw than low-rate batteries, but still offers excellent service life.
Compatibility: Direct replacement size for industrial type batteries.
āļø Standard Technical Specifications
Check these core specifications for compatibility:
Model: ER18505M
Nominal Voltage: 3.6 Volts (ER Series Lithium)
Nominal Capacity: Typically between 3500 mAh to 4000 mAh (High Capacity)
Dimensions: 18.5mmx 50.5mm
Chemistry: Lithium Thionyl Chloride
Key Advantage: Very low self-discharge rate for a shelf life of up to 10 years.
š¦ Package Included
1X ER18505M 3.6V Industrial PLC Battery
ā ļø Important Safety Warning
NON RECHARGEABLE BATTERY! š« Do not attempt to recharge this battery.
Do not mix with batteries of different chemistries, type, or age.
Do not throw the battery into water or cut the battery open.
